Industrial Fittings

Buttweld Fitting:

A buttweld fitting is a weldable pipe fittings. These fittings allow changing the direction of flow or to branch off or reduce the pipe size. It facilitates to attach auxiliary equipment.

Buttweld fittings use seamless or welded pipe as the starting material and are engineered to get the shape of elbows, tees, reducers etc. As the pipes are provided with Schedule 10 to Schedule 160, butt weld pipe fittings are provided same way.

Because of the cost advantage, welded butt weld fittings are more common in stainless steel. At Champion Metal Corporation, we provide forged Steel buttweld fittings in India which are fabricated in accordance with ANSI / ASME B16.9.

Butt weld fittings provided by us are elbows, caps, tees, reduces and out lets (olets). These best quality fittings are the most common type of welded pipe fittings. These are specified by nominal pipe size and pipe schedule.

Types: Caps – Crosses – Elbows – Reducers – Stub Ends – Tees

Sizes: 1/2″ – 36″ + Schedules: S/5s – XXH

Alloys: Aluminum – Carbon – Nickel Alloys – Stainless

Common material for butt weld fittings are A234 WPB (A & C also available), High Yield Carbon Steel, Stainless Steel 304 and 316 and Nickel Alloys.

Stainless Steel: ASTM A 312, A 213, A 213, A 249, A 269, A 358, A 240, A 276

Type: 202, 304, 304L, 304, 304H, 316, 316L, 316Ti, 321, 321H, 317, 317L, 310, 310S, 409, 410, 420, 430 etc.

Carbon Steel: ASTM A 106, A 53, API A 5L Gr A, B, C, ASTM A 333, Gr 1 to 6 (IBR & NON IBR)

MS and GI Fitting:

Available in “A”, “B” & “C” class as per IS grades

Sizes available from 1/2″NB to 24″ NB

Alloy Stel: ASTM A 335, GR P1, P2, P5, P9, P11, P22, P91

Nickel Alloys: Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy 904, Titanium, Tungston, SIlver Nickel, Zirconium, Palladium, Vanadium etc.

Copper Alloys: Aluminium, Copper, Brass & Gunmetal

Buttweld & Forged Fittings: ASTM A 403, A182, A 234, A 105, A 420, A 350 & LF2 etc. (IBR & NON IBR)

Types: Elbow, Tee, Reducer, Return Bends, Stub-Ends, Cap, Colla, Cross, Insert, etc.

Size: 1/8″NB TO 48″NB. (seamless & welded)

Wall thickness: sch. 5s to sch.xxs.

FORGED Fitting:

Pipe Fittings are used to connect different equipments and also to change the direction of flow in the piping system. These are classified as “welded” or “pressure” fittings. Pressure fitting uses National Pipe Thread (NPT) to connect to the pipe while welded fittings are welded on to the piping system.

Stainless steel fittings made from forgings are fabricated to make them stronger than cast. Forged steel has a high impact tolerance. Because of the tighter grain structure of the steel, forged steel has a high wear resistance. When the steel goes through the thermal and mechanical process, it changes the shape of the steel while it is still in a solid state. The process makes it mechanically stronger and more reliable. The process is used to create a stronger product without going for higher cost alloys.

As being leading forged fitting supplier in India, we provide best quality threaded elbows and couplings to socket weld inserts. We provide complete range of 3000 lb stainless steel forged fittings.

Types: Bushings – Caps – Couplings – Crosses – Elbows – Plugs – Tees – O-Lets – Unions

Sizes: 1/8″ – 4″ End Connections: Threaded – Socket Weld

Pressure: Class 3000

Alloys: Aluminum – Carbon – Stainless

Range: 15 NB To 100 NB : 3000 #, 6000 #, 9000 #.

Form: S/W & SCRD

Type: Elbow, Tee, Union, Cross, Swage Nipples, Coupling, CAP, Plug, Bush, Sokolet, Weldolet, Thredolet, Elbolet, Nipolet.

Stainless Steel: ASTM / ASME SA 182 F 304 , 304L, 304H, 304N, 304LN, 309, 310H,316,316H, 317, 317L, 321, 321H, 347, 347 H.

Duplex Steel: ASTM / ASME SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61.

Carbon Steel: ASTM / ASME A 105. ASTM / ASME A 350 LF 2.

Alloy Steel: ASTM / ASME A 182 GR F 5, F 9, F 11, F 12, F 22, F 91.

Nickel Alloy: ASTM / ASME SB 564 UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400),UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276) ASTM / ASME SB 160 UNS 2201 (NICKEL 201) ASTM / ASME SB 472 UNS 8020 (ALLOY 20 / 20 CB 3)

Copper Alloy: ASTM / ASME SB 61 UNS NO. C 92200 & ASTM / ASME SB 62 UNS NO. C83600.

ASTM / ASME SB 151 UNS NO. 70600, 71500, C 70600 (CU -NI- 90/10), C 71500 (CU -NI- 70/30), ASTM / ASME SB 152 UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200.

SOCKET WELD FITTING:

Socket Weld fittings are available in different types such as elbow, coupling, reducer, tee, cross etc. Socket weld pipe fittings are made in forged carbon steel. They are also made in stainless steel and nickel alloy. They are made as per ASME B16.11.

Socket Weld Fittings including socket weld elbow, socket weld tee, socket weld cross, socket weld union, socket weld couplingare available in pressure ratings of 3000, 6000, and 9000. Socket Weld Fittings are covered under ANSI / ASME B 16 11. Socket weld fittings are available up to 4 inch nominal.

Designed in compliance with international quality standards, these ASME B16.11 Socket Weld fittings are corrosion resistance, sturdy and durable. Forged socket weld fittings are also available in all major stainless steel grades (ASTM A182 F316L, F304L), carbon steel and alloy steel grades.

Socket weld fittings ‘geometry is compact to some extent, but the right angle formed in eblows and Tees are more hasty than with a short radius butt weld eblow. Socket weld fittings are widely used in piping systems across major industries such as ship building, waste water treatment, power generation, petrochemicals, diary industry, breweries, chemical, pharmaceuticals and others.

Range: 15 NB To 100 NB : 3000 #, 6000 #, 9000 #.

Form: S/W & SCRD

Type: Elbow, Tee, Union, Cross, Swage Nipples, Coupling, CAP, Plug, Bush, Sokolet, Weldolet, Thredolet, Elbolet, Nipolet.

Stainless Steel: ASTM / ASME SA 182 F 304 , 304L, 304H, 304N, 304LN, 309, 310H,316,316H, 317, 317L, 321, 321H, 347, 347 H.

Duplex Steel: ASTM / ASME SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61.

Carbon Steel: ASTM / ASME A 105. ASTM / ASME A 350 LF 2.

Alloy Steel: ASTM / ASME A 182 GR F 5, F 9, F 11, F 12, F 22, F 91.

Nickel Alloy: ASTM / ASME SB 564 UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400),UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276)

ASTM / ASME SB 160 UNS 2201 (NICKEL 201) ASTM / ASME SB 472 UNS 8020 (ALLOY 20 / 20 CB 3)

Copper Alloy: ASTM / ASME SB 61 UNS NO. C 92200 & ASTM / ASME SB 62 UNS NO. C83600. ASTM / ASME SB 151 UNS NO. 70600, 71500, C 70600 (CU -NI- 90/10), C 71500 (CU -NI- 70/30), ASTM / ASME SB 152 UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200.

TC FITTING:

Tri-clamp fittings are also known as tri-clover or sanitary fittings. These TC fittings in India are common type of fittings. Threads in pipe fittings are great place for organisms to hide & contaminate your fluid. Because these fittings have virtually no threads, it’s easy with these fittings to keep sanitary. The TC fittings are very universal and available as per your require.

Because of our experience in providing TC fittings to varied industries, we assure you that we understand your demand of product and can offer the best suitable solutions and products.

Standards: DIN / TRICLOVER / IDF / SMS / BSP / NPT

Grade: SS 201, SS 202, SS 304, SS 304L, SS 316, SS 316L, SS 310S, SS 321, SS 904L

Size: 1/4″ to 6″

Thickness: 1.0 mm to 5 mm, 12 SWG, 14SWG, 16 SWG, 18SWG, 20 SWG

Range: Dairy Bends, Dairy Tee, Dairy Reducer, TC Clamps, Pipe Holder Clamp, SMS Union, DIN Union, TC Ferrule, Hose Clamps, Tri Clamp Tee, Tri Clamp Elbow, Tri Clamp Reducer, Triclover, Joint, SS Spray Balls.

DAIRY FITTING:

ChamChampion Metal Corporation is one of the leading suppliers, stockiest and distributors of Dairy Fittings in India. It is involved in fabricating premium quality dairy fittings following international quality policy. We make use of high quality of raw material and makes sure to provide durability of highest quality of industry standard products.

Stainless Steel Dairy Fittings are highly durable and well-known for its long lasting features. It is available with features like high tensile strength and corrosion resistance. These dairy products in Ankleshwar also provided with precise dimensional accuracy. These Carbons Steel Dairy pipe fittings are demanding industrial fittings and used in many varied industrial applications. We also offer these fittings in different grades such as 304 Dairy Fittings, 310 Dairy Fittings, 316 Dairy Fittings, 317 Dairy Fittings, 321 Dairy Fittings, 347 Dairy Fittings, 446 Dairy Fittings, etc. These Alloy Steel Dairy Pipe Fittings can be customized in terms of sizes and thicknesses as per your requirement.

Standards: DIN / TRICLOVER / IDF / SMS / BSP / NPT

Grade: SS 201, SS 202, SS 304, SS 304L, SS 316, SS 316L, SS 310S, SS 321, SS 904L

Size: 1/4″ to 6″

Thickness: 1.0 mm to 5 mm, 12 SWG, 14SWG, 16 SWG, 18SWG, 20 SWG

Range: Dairy Bends, Dairy Tee, Dairy Reducer, TC Clamps, Pipe Holder Clamp, SMS Union, DIN Union, TC Ferrule, Hose Clamps, Tri Clamp Tee, Tri Clamp Elbow, Tri Clamp Reducer, Triclover, Joint, SS Spray Balls.

FERRULE FITTING:

Ferrule Tube Fittings are used to provide torque free, leak proof joints at all tubing connections. It is very important industrial fitting in India that prevents costly and hazardous leaks in industrial processes as well as instrumentation tubing. Double ferrule Tube Fitting contains four components called the nut, the front ferrule, the back ferrule and the body.

All four components are fabricated with high precision to very stringent tolerances under strict quality control procedures. The basic general stainless steel ferrule tube fitting is a 4 piece fitting set comprising of a nut, back ferrule, front ferrule and the body. With the addition of tubing at the time of installation, it becomes a 5 piece solid sealed connection. When these fittings installed to tubing become a five piece connection, it is the combination of geometry and metallurgy. It provides the rigid leak free joint by the sequential action of twin ferrule.

These industrial fittings in Ankleshwar are used in Power Plant, Pharmaceutical Industries, Marine & any Process Industry. Petro Chemicals, Oil & Gas Industries, Steel Industries, Chemical Industries, Fertilizers, Hydraulic & Pneumatic.

Tube to Tube – Straight, Elbow, Tee, Cross, Bulk Head

Tube to Male – Male Stud, Male Elbow, Male Tee

Female Connector – Female Straight, Elbow, Tee

Positionable Elbow & Tee (Swivel)

Tube Closure – Plug, Cap

Weld Connector, Nut & Ferrule Set

304 stainless steel, 316 Stainless Steel, 6Mo, Alloy 400, Alloy 825, Alloy 625, Copper, Brass, Titanium and more. Similar to Parker Instrumentation fittings New Eagle Industrial Corporation Stainless steel tube fittings work reliably on both seamless and welded-redrawn, fully annealed type 304, 316 and 316L tubing.

FERRULE FITTING:

We are foremost distributor and supplier of Manuli MF2000 range of Hydraulic Fittings which apply to the B.S.,SAE, DIN & JIC standards. The entire range is provided with assurance of quality and reliability for the performance. The best grade raw material is used to fabricate the series of hydraulic fittings in Ahmadabad. It offers long lasting service life. It is valuable industrial fitting that is available with wide ranging alternatives. Hose adapter, tube connector, special propose connector and other Hydraulic Fittings are perfect for industrial applications and meet or exceed all SAE standards.

Dealer of ASTM A479 304 Stainless Steel Reusable Fittings, SS 304 Industrial Hose Fitting Supplier, Stainless Steel UNS S30400 Adaptor Fittings, SS WERKSTOFF NR. 1.4301 Hydraulic Hose Fittings Exporter in India.

specifications: ASTM A276 ASME SA 479

Tube Size: 6mm to 38mm to 1/4″ to 1 1/2″

Thread: NPT, BSP, BSPT, UNF, ISO, SAE etc.

Brass: ASTM B16 ASTM B 453

Pressure Rating: 6000PSI for Stainless Steel, 300/1000/3000PSI for Brass, SS304, 316, 310, 410, inconel mone, duplex steel, MS, CS, brass, copper, etc.

FERRULE FITTING:

We are maintaining the stock of around 3000 ton of forged threaded fittings that are available in various types of forged threaded fittings including threaded elbow, threaded tee, threaded cross, threaded bends, threaded coupling, threaded caps, threaded union, hexagon bushing, square plugs, and hexagon plugs. We also manufacture and supply fittings specially manufactured to meet your custom requirements in a variety of stainless steel and special alloy grades.

Champion Metal Corporation is a leading supplier of threaded fitting in Ankleshwar. Years of experience in providing industrial fittings in India helps us to maintain our quality policy. These forged threaded fittings are available in varied category and configurations. The range includes threaded elbow, threaded tee, threaded cross, threaded bends, threaded coupling, threaded caps, threaded union, hexagon bushing, square plugs, and hexagon plugs. The range is provided with proven product quality.

Material: Blackheart malleable cast iron as per IS : 14329-1995 grade BM-300.

Threads: Threaded as per IS : 554-1999, parallel female and taper male threads.

Finish Galvanized finish tested in accordance with provisions contained in IS : 4759-1996. SS304, 316, 310, 410, inconel mone, duplex steel, MS, CS, brass, copper.

PLUMBER FITTING:

The right plumber fittings are really a peace of mind as a little adaptor or coupling is very important to your piping unit. The aesthetic and qualitative range of plumber fitting is available with vast options to be chosen from. Have the scores of alternatives for your need with high quality promise.

Types of Pipe Fittings:

Material: Blackheart malleable cast iron as per IS : 14329-1995 grade BM-300.

Threads: Threaded as per IS : 554-1999, parallel female and taper male threads.

Finish: Galvanized finish tested in accordance with provisions contained in IS : 4759-1996.

Stainless Steel: ASTM / ASME SA 182 F 304 , 304L, 304H, 304N, 304LN, 309, 310H,316,316H, 317, 317L, 321, 321H, 347, 347 H.

Duplex Steel: ASTM / ASME SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61.

Carbon Steel: ASTM / ASME A 105. ASTM / ASME A 350 LF 2.

Alloy Steel: ASTM / ASME A 182 GR F 5, F 9, F 11, F 12, F 22, F 91.

Nickel Alloy: ASTM / ASME SB 564 UNS 2200 (NICKEL 200), UNS 4400 (MONEL 400),UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600), UNS 6601 (INCONEL 601), UNS 6625 (INCONEL 625), UNS 10276 (HASTELLOY C 276) ASTM / ASME SB 160 UNS 2201 (NICKEL 201) ASTM / ASME SB 472 UNS 8020 (ALLOY 20 / 20 CB 3)

Copper Alloy: ASTM / ASME SB 61 UNS NO. C 92200 & ASTM / ASME SB 62 UNS NO. C83600. ASTM / ASME SB 151 UNS NO. 70600, 71500, C 70600 (CU -NI- 90/10), C 71500 (CU -NI- 70/30), ASTM / ASME SB 152 UNS NO C 10100, C 10200, C 10300, C 10800, C 12000, C 12200.

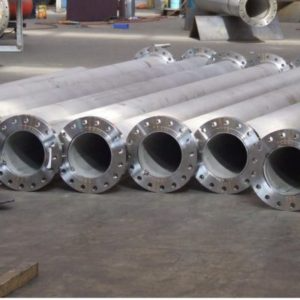

PADDLE AND FLANGED FITTINGS:

Champion Metal Corporation is among the leading names producing and supplying paddle and flanged fittings in India. Champion Metal Corporation is a Manufacturer, Stockists & Supplier of premium quality range of forged pipe fittings as well as ideal solutions for your industrial piping systems. Series of our Stainless Steel Pipe fittings that are manufactured under the expert guidance of our hard-working workforce is provided with assurance of timely delivery and good performance.

With the advance level production facilities it is possible to fabricate the exact paddle and fitting as per your require. As we manufacture flange in pipe through welding. We provide custom pipe fittings with high precision as per your requirement. Our fabrication welding flanges are demanded in industry for varied application

The high quality raw material is behind its long lasting performance. It is fabricated as per international fabrication norms to deliver best quality piping solutions. Paddel and flinged fitting in India are the products, manufactured using quality material and go through a rigorous quality check at all stages of production to ensure quality. Fitting products are manufactured using quality material and go through a rigorous quality check at all stages of production to ensure quality.

IBR FITTING:

These IBR fittings are utilized in the pipes to give absolute assurance of leak proof and unremitting supply of material through the system without any obstruction. At Champion Metal Corporation, we offer high tensile and best in class IBR Pipe Fittings which are manufactured in accordance with the guidelines and norms decided by Indian boiler regulations.

We offer broad range of IBR fittings. Our long lasting range of IBR fittings includes IBR Unequal Tee, IBR Concentric Reducer, IBR Pipe Nipple, IBR Equal Tee, IBR Elbow, IBR Barred Tee, IBR Eccentric Reducer & IBR End Cap and IBR Return Bend in diverse materials like stainless steel, alloy steel, carbon steel, nickel alloy and many more in all foremost grades and specifications Size 1/8″ to 48″, Schedule SCH20, SCH30, SCH40, SCH60, SCH120, SCH140, SCH160, STD, XS, XXS, Forms Seamless, Welded, Fabricated, ERW

FIRE FITTINGS:

Champion Metal Corporation is one of the leading stockist of Fire Fittings in India, offerring a vast range of patterns and sizes to suit our customer’s requirements. We offer great range of fire fittings including gunmetal and light alloy fittings. The range cosists of hose couplings, adaptors blanking plugs, fire hose connectors & flange adaptors. Get help of our experts to select the right one for your system, they will provide you the best suitable solution on the base of experience.

Cam and groove couplings: these are used as the cheaper way for disconnecting and reconnecting discharge hoses.

Higbee thread fittings: these are providing an easy identification of the first thread and allow for the quick connection of one coupling to another.

Storz fire hose couplings: these are referred to as sexless. It secures using interlocking hooks and flanges with a quarter turn of the coupling.

Fire hose end connectors: these are normally referred to as couplings. It is made from cast brass or extruded aluminum.

Adapter fittings and couplers: these are mainly used to change from one size or thread pattern to another, direction or include a swivel in a hose lay line.
